R-Value 15.3 Reflective Insulation (White Facing)

You can calculate a delivered wholesale price in seconds below. If you are viewing with a phone, R.15 reflective Insulation pictures are blow calculator.

Though comparable in price to R-17, with an attractive white facer backing, R-Value 15.3 reflective insulation is the preferred interior appearance for many metal building purchasers.  This product’s R-value is slightly reduced from 17 to 15.3 due to replacing one side of the polyethylene backing and reflective reinforced foil with the ALTERNATIVE UV-resistant White attractor Facer.

R-Value 15.3 Reflective Insulation-Radiant Barrier (White Facing)

Roll Size 4′ x 175′ (700′ square foot) 5mm thickness.

If you prefer an attractive white finish and easy installation, the high R-Value 15.3 Reflective Insulation is the insulation for you.

After calculating an estimate, then fill out a Wholesale quote form. Factory Steel Overstock will email you the exact wholesale cost. You pay only $350 to $500 above cost. You are promised a price below market quotes.

white facing insulation

R-Value 15.3 Reflective Insulation (White facing)

R-Value 15.3 Reflective Insulation Details

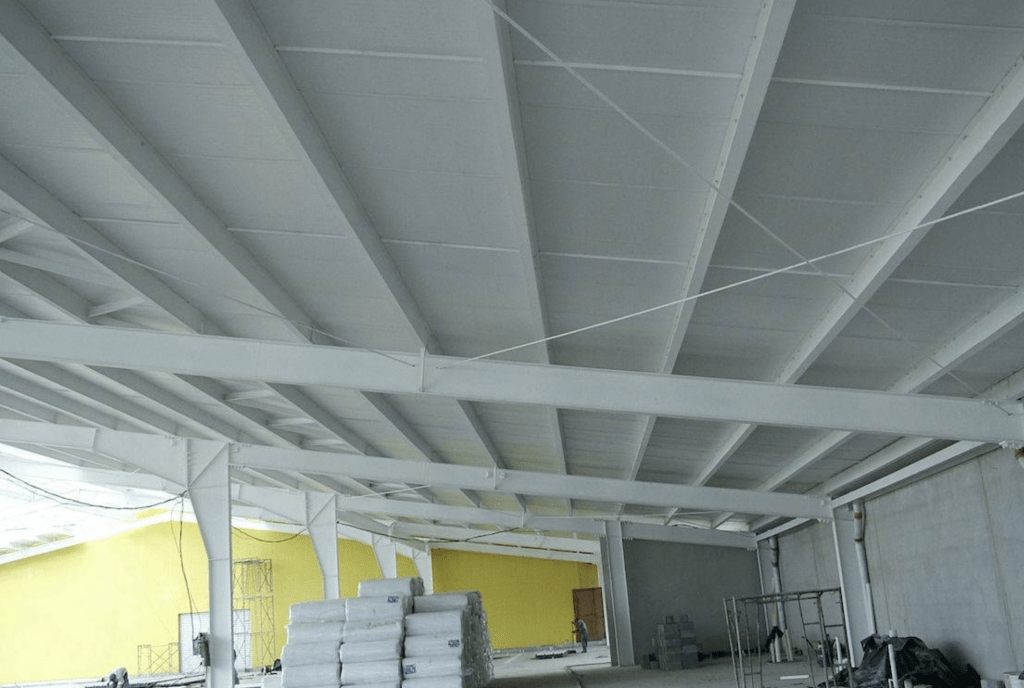

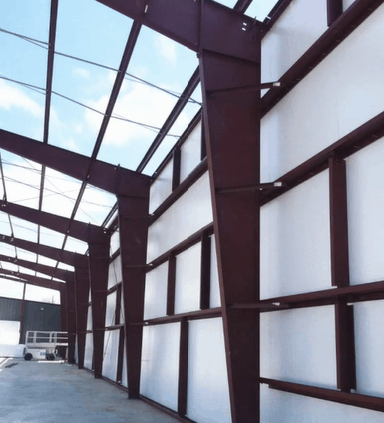

R-seal Insulation inside building
Nominal Thickness 5mm ( + or – 0.5mm) 0.2 in.
white facing insulation
Screen Shot 2024 03 28 at 2.05.27 PM
White Reflective Insulation

Saving Process for Buying High R-Value Reflective Insulation

  1. Fill out a Wholesale Insulation Quote,
  2. Please feel free to call 1-888-512-1116 to let our representative know you submitted the form. A wholesale quote will completed that same day.
  3. After the quoted savings, pay the brokerage fee $350-$550 fee that SAME DAY. Fee based on size of the order.
    • Ideally, for Reflective insulation orders, pay Factory Steel Overstock the insulation cost + the $350 service fee at the time of the initial order. Factory Steel Overstock will take care of the order from submission to delivery and beyond, ensuring a seamless experience with its A+ Better Business Bureau and 5-star rated service. After submitting an order, there is nothing for you to do except sign for delivery.
  • Reflective insulation is delivered in 7-10 days. Receive Order #. Ships the next day! Receive a call from the shipper before delivery.

R-Value 15.3 Reflective Insulation Features

Merges the advantages of insulation with protection against vapor, air, and radiant heat, ensuring your building stays cool and dry during the summer months and warm and dry through the winter. Excellently suited for both warm and cold environments, it boasts an “A+” rating from the BBB and has seen millions of square feet distributed across the globe.

  • It is ICC-ES Recognized
  • R-Value unaffected by outside humidity
  • It prevents 97% of radiant transfer (the primary source of heat flow)
  • Is a vapor barrier
  • Prevents condensation
  • 19 dba contact noise reduction
  • 90 Celsius (194 F) contact temperature rating
  • UV resistance
  • The center is polyethylene foam instead of air bubbles.
  • Material does not allow mold or mildew
  • Does not provide for nesting or rodents, bugs or birds
  • Easy seals around nails (no leaks)
  • 100% recyclable virgin raw materials; therefore eco -friendly.
  • Its surface keeps it airflow
  • Lighter weight; therefore, less cumbersome installation than fiberglass batt
  • Significant price savings over fiberglass batt and spay of same R-Value standard
  • Delivery times (fiberglass average delivery is 2 to 3 weeks vs. reflective is 7 to 10 days).

Resistance to Growth of Fungi

  • Aspergillus niger
  • Aspergillus avus
  • Aspergillus versicolor
  • Penicillium funiculosum
  • Chaetomium globosum
  • ASTM C 1338

R-Value 15.3 Reflective Insulation Specifications

  • 4′ x 175′ (700′ per roll)
  • Adhesive along one side of the 175′ roll.
  • 5 mm thickness
  • Improve tear resistance
  • Flame Spread – ZERO

Insulation Layered

  • Reflective reinforced foil
  • Polyethlene foam
  • Reflective reinforced foil
Nominal Thickness0.20″ (5mm)
Flame Spread Index0ASTM E 84-10
Smoke Developed Index10ASTM E 84-10
Fungi ResistanceNo GrowthASTM E 84-10
Cell StructureClosed
Water Vapor Permeance0.09 PermsASTM E 84-10

Resistance to Temperature and Humidity: Exhibits no signs of corrosion, delamination, or deterioration in metalization as per ASTM C-1258-08 standards.

People choose white reflective insulation over the traditional silver finish for variety of reason:

  1. Appearance: The white finish offers a clean, bright look that is often preferred choice for insulation buyers. It lightens interior spaces due to its brightness.
  2. Additional Reflective Properties: The difference from white reflective insulations from silver is that it reflects a broader spectrum of the sun’s rays, including visible light, which contributes to heat gain. This can result in a cooler interior space as compared to using the silver finish, which mainly reflects infrared radiation.
  3. It Reduces Glare: White doesn’t produce additional glare. However Silver reflective insulation can produce significant glare when exposed to sunlight.
  4. Has UV Resistance: White reflective insulation finishes are treated for enhanced UV resistance. This will prolong the life to the insulation since UV rays can degrade the insulation over time.
  5. Architects Prefer White: It simply compliments a wider range of finishes and styles.

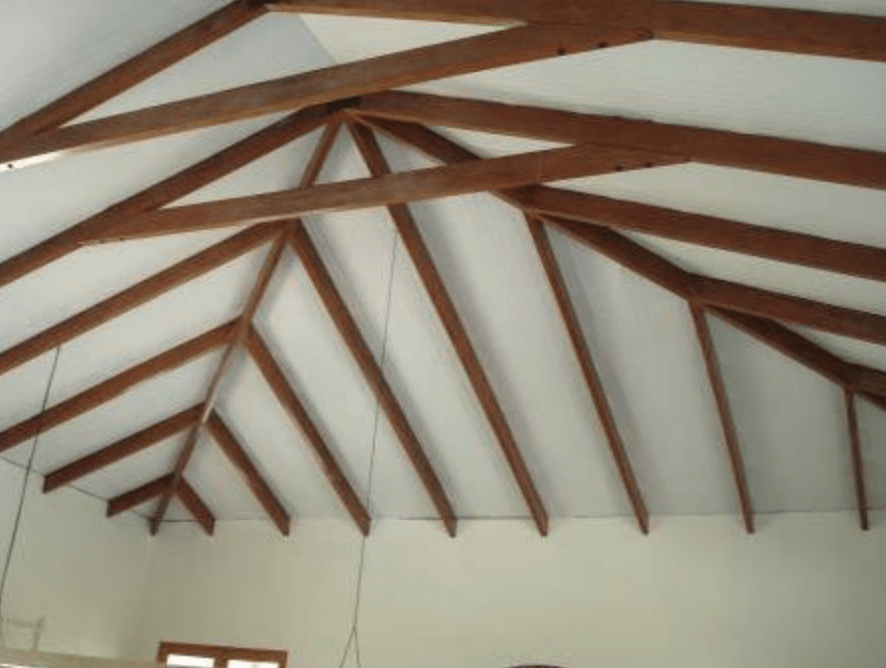

R Value 15.3 Reflective Insulation White Facing 8

Why you shouldn’t use spray foam insulation

  1. It is too expensive
  2. It doesn’t protect your steel building from radiant heat transfer.
  3. It is labor extensive, so a professional is required for installation
  4. A great deal of spray foam can release toxic fumes when it burns
spray foam 1
Square Ft
4′ x 175′
(700′ Sq. ft.
Wholesale Delivered Estimates
R- Value 15.3
(White Facing)
700 $660
1400 $974
2100 $1,459
2800 $1,598
3500 $1,923
4200 $2,248
4900 $2,573
5600 $2,897

Related Products

reflective tape
Reflective Tape


Reflective tape plays a crucial role! Sealing seams with this tape enhances the efficiency of insulation. Available in packs containing 8 rolls, each set measures 2.83 inches by 480.8 yards in total, covering an area of 4500 square feet of insulation.

Screen Shot 2023 09 20 at 12.27.54 PM
Double Sided Tape


Double-sided adhesive tape, available in a package of 4 rolls, each being 1-1/2 inches wide and 60 yards long, is designed for securing insulation material to surfaces. This set is capable of effectively serving up to 2000 square feet of insulation area.

Screen Shot 2024 04 04 at 11.34.52 AM
White Patch Tape


White polypropylene facing/patch tape, provided in sets of 2 rolls, with a total measurement of 3 inches by 100 yards. This tape is specifically designed for sealing seams or patching FfgV or any VR faced insulation, effectively covering an area of 1000 square feet of insulation.

Screen Shot 2023 07 20 at 7.44.41 AM
Super Metal Sealant


Super Metal Adhesive: Sold in a pack of 12 tubes, this sealant efficiently bonds insulation materials to a wide range of surfaces.
