Standard Accessories

Steel Building Accessories Factory Steel Overstock

Review Our Metal Building Accessories Here…

Commercial Walk Doors

Description: Complete door kit with steel frame, header and jamb trim, threshold and heavy duty lock set.  Factory Steel Overstock will not be supplying walk doors for those with high wind rated code requirements.  Please purchase locally.

steel walk door

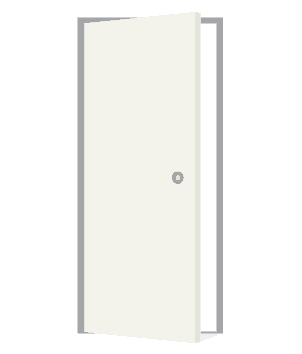

3 x 7 walk door for steel building
3×7 Walk Door
4 x 7 walk door for steel building
4×7 Walk Door

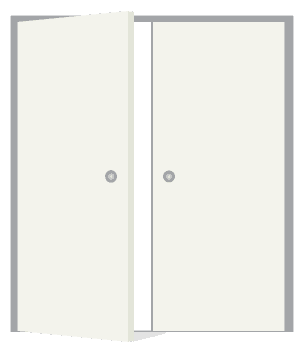

6 x 7 walk door for steel buidling
6×7 Walk Door

Commercial Windows

Description: Framed Sliding Windows with Screen AND 2×7 Fixed Slimline Window.

2070 Slimline Window
2×7 Slimline Windows

4 x 4 metal building insulated window
4×4 Horizontal Slide
3 x 3 insulated metal building window
3×3 Horizontal Slide
6 x 3 steel building window
6×3 Horizontal Slide
4 x 3 insulated steel building window
4×3 Horizontal Slide
2 x 7 slimline window for steel building
2×7 Slimline Fixed

Skylights

Description: Translucent panels allow natural light into the building.

Skylights

Ridge Vents, Louvers & Circular Vents

Description: An accessory that allows air to pass through.

  • Ridge Vents – Sizes 10′ ridge ventilators with 9″ and 12″ throats.  Colors finish is galvalume or white. Each comes with bird screen and adjustable damper.
  • Louvers – Sizes fixed 3’x3′, 3’x4′, and 4’x4′ or adjustable 3’x5 ‘and 4’x4’.  Includes bird screen.  Available finish in most Wall Colors.
  • Circular Vents – Sizes 20″- Finish is galvalume or white. Includes bird screen.

ridge vent for metal buildings
Ridge Vent
Metal Building Louver
Louver

metal building circular vent
Circular Vent

Framed Openings

Description: This accessory is used to open portions of a wall.

Walk door and window framed openings

Pre-designed framed openings are not required for walk doors or windows- unless in high wind area.  For hind wind requirements, we offer Framed Opening Kits in lieu of costly high wind-rated doors.  Please purchase doors locally.

Overhead/Roll Up Door Framed Openings & Additional Portal Frame Bracing if Required

If there is no space remaining for X bracing to be placed on an endwall or a sidewall, add approximately $650 to cost for every wall fully utilized by your openings locations.  CLICK to learn more about Portal Frame Vs X-Bracing.

FSO offers Fully Flashed Framed Openings as a Standard Service!

steel building door opening flashing
Fully Flashed Framed Opening

30x60x14 steel building specials
NON-Flased Framed Openings Shown Here

Gutters and Downspouts

Description: Gutters and downs protect your building as well as enhance the building’s appearance.
NOTE: 40+ lb snow loads are required to have Northern Ice components which are factored into our online pricing.

30x60x12 steel building red
Gutters and Downspouts Shown Here


Wainscot

Description:  4′ wainscot in your chosen design truly enhances your building’s look.  (See our Executive Model prices for another Option 1 & 2 possibility including wainscot.)

Wainscot on Steel Building

For ADDITIONAL ACCESSORY options available in Option 3 (Get a Quote)…CLICK.

Looking for Foundation Plans…


Foundation Engineering Services:

Factory Steel Overstock  is now a resource for providing foundation engineering services for the following states: WA, OR, CA, ID, NV, AZ, WY, UT, CO and NE.


While the typical certified foundation design cost $1,500 to $2,000, Factory Steel Overstock provides the resource to you for only $1050, $250 of which will be paid to FSO and $800 to the foundation engineer.

A typical foundation design consists of the following:

  •         Slab on grade construction
  •         Monolithic foundation with full slab, spread footings or drilled piers
  •         Single story building with spans up to 70’-0”
  •         Building site with non-expansive soils
  •         No pier only foundations

If your foundation design requires more than what has been stipulated below, the engineer will have to custom quote.

TO ORDER:  PLEASE EMAIL FACTORYSTEELOVERSTOCK@GMAIL.COM requesting Foundation Engineering Services.

Factory Steel Overstock est. March 2011, has A+ Grade, has a 5 Star rating and all positive reviews posted at the BBB.  Click BBB logo to read reviews.

For those Requesting A Wholesale Quote, please fill out quote form. Also have the integrity to pay the profit % or minimum $200 AFTER quoted savings OR email a competitor’s quote (black out competitor’s name) that reflects a lower price within this time-line. Factory Steel Overstock will honor its guaranteed saving terms.

Scroll to Top

join the club

Newsletter

Valuable information. Easily unsubscribe!

Key Features Included

  • 40 Yr. Warranty on Colored Walls and Trim
  • Solid I-Beam Construction
  • Clear span design (no interior columns)
  • Lifetime Structural Warranty
  • Complete Trim Package for walls, roof and doors  (base angles and base closures in lieu of base trim)
  • Framed Openings Fully Flashed
  • 40 Yr. Warranty on Colored Roof or
    25 Yr. Warranty Galvalume  Plus Roof Finish
  • 26  or 24 sheeting -80,000 p.s.i. tensile strength
  • 1 1/4″ sheeting profile
  • Sheeting is Purlin bearing rib (PBR panels – larger overlap than R panels- All panels incorporate the purlin bearing profile)
  • Long life roof fasteners | All bolts, screws, closures, weather stripping, sealants, fasteners as required to erect structure (anchor bolts by others).
  • The pre-punched connecting clips for the structural members, including endwall columns, are welded in place and then primed during fabrication
  • All structural elements for the specified framed openings (jamb, girts and headers) are pre-cut and pre-punched and the necessary clips are welded on during fabrication
  • Anchor bolts and erection services by other. Manufacturer is an AISC (American Institute of Steel Construction) certified plant as well as an MBMA (Metal Building Manufacturer Association) member.


FACTORY STEEL OVERSTOCK’S SPECIFICATIONS

Free (Initial) Certified Building Plans for ALL 50 states.

  • Letter of Certification
  • 2 sets of certified stamped erection plans
  • 2 sets of certified stamped anchor bolt plans

PRIMARY FRAMING

(Mainframes)

SOLID I-BEAM CONSTRUCTION

Material used is minimum 50,000 p.s.i. yield strength. (Some manufacturers use 35,000 p.s.i. yield strength material, which is not as strong). Frames are single bead, continuous submerged arc welded by automatic welding machines to help insure quality. A factory-applied rust inhibiting primer is used to help protect the mainframes and secondary material during the erection process.

ENDWALL FRAMES AND COLUMNS

are either cold formed, hot-rolled or built-up “I” sections depending on design requirements.

SECONDARY FRAMING

GIRTS (in sidewall) and PURLINS (in roof) are minimum 8” to meet design requirements. Cold rolled Z-section, 12 to 16 ga ASTM A-653, 55,000 p.s.i. yield material is used to provide maximum strength.

Bypass girt system overlaps at sidewall columns forming a continuous “span” for extra strength. All girt clips are factory welded for easier erection.

PURLINS are top-mounted on the rafter with a varied lap of 1’6” to 5’ for strength and cost savings in erection labor. Maximum purlin spacing is 5’ on center.

EAVE STRUT is a cold-formed C-section that is rolled for the appropriate roof pitch to help insure weather tightness at the eave.

RAKE ANGLE is a 2×4 angle supplied for the attachment of the sheeting at the rake of the building for ease of installation.

BASE ANGLE is a 2×4 angle supplied for the attachment of the base of the sheeting to the concrete. The base angle is to be attached to the concrete with ram-sets or equivalent anchors.

BRACING All diagonal galvanized cable bracing is supplied for roof and walls to remove longitudinal load from the structure. Galvanized cable is used rather than solid rod to prevent the bracing from “sagging” under its own weight and it is easier to install. All cables are pre-stressed and pre made for easier erection.

Angle Flange Bracing is provided for the connection of the rigid frame to the purlins and girts. This insures the allowable compressions are adequate for any combination of loading.

FRAMED OPENINGS have cold-formed C-section jambs and headers to help insure easy installation of overhead doors, etc.

SHEETING

24 or 26 gage 80,000 P.S.I. yield strength material standard. Some manufacturers use a lower yield strength material, which is less resistant to damage from hail or other impacts. 40 year warranty on premium color finish on walls and trim. Roof finish is galvalume or premium colored finish

ALL COIL STEEL has a minimum of G-90 class Galvalume substrate (1.25oz hot dipped) to help prevent deterioration of the steel sheeting.

DEEPER HIGH-RIB SHEETING (PBR) with more frequent corrugations provides extra strength.

FASTENERS

STRUCTURAL BOLTS meet requirements ASTM Standards.

A-325 for primary frame connections

A-307 for secondary framing

SELF-DRILLING AND SELF-TAPPING FASTENERS are pre-assembled with neoprene washers and metal caps to help insure weather tightness.

CLOSURES

CLOSED CELL NEOPRENE STRIPS are used to help seal building. Located at eave, gable, and optional at the base of building to help provide weather tightness. Pre-formed shapes to match panel configuration providing a tighter seal.

1-1/2” SHEETING NOTCH at base of concrete where panel site is designed into every building. Sheeting notch provides an air infiltration stop on blanket insulated building.

SEALANTS

SEALANT for roof sidelaps, endlaps and flashing at gable is provided to help insure weather tightness. Nominal 3/8” x 1/8” thick pressure sensitive tape sealant for ease of installation.

RIDGE CAP

LONG OVERLAP to help prevent water from siphoning into building.

TRIM AND FLASHING

All buildings are fully trimmed at rake (gable), corners, and eaves with standard trim material for a more finished look. This not only improves look of building, it is an additional deterrent to moisture, insects, and dirt from getting into the building.

PLANS AND DRAWINGS

ANCHOR BOLT setting plan, building reactions for foundation design, Erection Manual, and Engineer

Letter of Certification is provided shortly after receipt of deposit for building.

ERECTION DRAWINGS provide step by step instructions for case of assembly by dealer or customer.

ENGINEER CERTIFIED APPROVAL DRAWINGS including wall and roof framing diagrams, cross sections, sheeting, and flashing details are provided. These drawings clearly show the proper erection and assembly of all building components.

ALL PARTS ARE NUMBERED A part number is placed on each component (not including sheeting,screws, etc.). These part numbers coincide with a detailed listing contained in the bill of materials that come with your building. They same numbers are also used on the drawings for clarity and to help with assembly on the jobsite.

FOUNDATION PLANS  – WE HAVE: Certified Foundation Plans (additional cost) for the following states: WA, OR, CA, ID, NV, AZ, WY, UT, CO and NE.



Compare Your Options

Features Option 1 Option 2 Option 3
Cost for Quote Free Online Prices Free Online Prices Free Online Estimator - OR - $100 Refundable Custom Quote
Customer Service From Order to Delivery and Beyond! From Order to Delivery and Beyond! From Order to Delivery and Beyond!
Packages 4 Base Models - Assorted Accessories already Included in pricing! 7 Base Models - You add desired accessories. Personalized: You make the choices from Non-Complexity Building Design or CALL for High-Complexity Building Design Quote
Dimensions Available Min: 30' x 40' x 10'
Max: 50' x 100' x16'
Min: 30' x 40' x 12'
Max: 50' x 100' x 16'
Min: 24' x 30' x 10'
Max: 100' x 500' x 30'
Rollup Doors 1 or 2 Insulated Roll Up Doors Included - sizes as noted in Key Features of your chosen building size. 1 or 2 Insulated Roll Up Doors Included - sizes as noted in Key Features of your chosen building size. You Select as many as are physically possible - sizes range from 8x8 through 18x16
Accessories Assortment of Walk Doors, Windows, Insulation, Gutters and Downspouts, Wainscot, Premium Colored Roof Finish - as noted in Key Features of your chosen building size. You Can Add On Walk Doors, Windows, Ridge Vents, Skylights, Insulation, Gutters and Downspouts, Wainscot, Premium Colored Roof Finish (if not already included in Base Model Key Features!) Your choice of Roll Up Doors, Walk Doors, Windows, Ridge Vents, Skylights, Insulation, Gutters and Downspouts, Wainscot, Premium Colored Roof Finish, Roof Extensions. You let us know what you want!
Choice of Profit 3%-10% 3%-10% 5%-10%
Fully Flashed Framed Openings 1 or 2 Included for Roll Up Door - Locations as Shown in Sketches 1 or 2 Included for Roll Up Door - Locations as Shown in Sketches Framed Openings Quantity & Locations as desired. Portal Frame Bracing in lieu of X-Bracing if needed for your design.
Walk Doors - Commercial Grade - White 1 or 2 Insulated Walk Doors Included - As noted in Key Features of your chosen building size. Note: Frame Kit included in lieu of Walk Door for High Wind-Rated areas. Add as many 3x7, 4x7 or 6x7 Insulated Walk Doors as you like. Note: Frame Kit offered in lieu of Walk Door for High Wind-Rated areas. Please buy door locally for savings. Add as many 3x7, 4x7 or 6x7 Insulated or Non-Insulated Walk Doors as you like. Note: Frame Kit offered in lieu of Walk Door for High Wind-Rated areas. Please buy door locally for savings.
Windows - Commercial Grade 1 or 2 Insulated 3x3 Windows Included - As noted in Key Features of your chosen building size. Add as many 2x7 Fixed, and 3x3, 4x3, 6x3 Horizontal Slide Insulated Windows... as you like. Add as many 2x7 Fixed, and 3x3, 4x3, 6x3 Horizontal Slide Insulated or Non-Insulated Windows... as you like.
Insulation Fiberglass or Reflective Roof and Wall Insulation included - As noted in Key Features of your chosen building size. Add in your choice of Fiberglass or Reflective Roof and Wall Insulation if desired. Add in your choice of Fiberglass or Reflective Roof and Wall Insulation if desired.
Gutters and Downspouts Included in most Packages - As noted in Key Features of your chosen building size. Note: Northern Ice System included in 40+ lb snow loads. Add on if not already included in Base Model. Note: Northern Ice System included in 40+ lb snow loads. Add on if you desire. Note: Northern Ice System included in 40+ lb snow loads.
Vents Not Included Add on Ridge Vents if desired. Your choice of building vents and louvers.
Skylights Not Included Add on Skylights in buildings over 30 width. Add on Skylights in buildings over 30 width.
Wainscot Only in Executive Model Included in Executive Model Add on available for all other Models. Available as option for any building.
Colors Your choice of Wall, Trim and Roll Up Door Colors as shown. Your choice of Wall, Trim and Roll Up Door Colors as shown. Your choice of Wall, Trim and Roll Up Door Colors as shown.
Colored Roof Finish Included in some Packages - As noted in Key Features of chosen model. Add on Premium Color Roof Finish if not already included in Base Model. Your choice to add on Premium Color Roof Finish in your design.
Buy Now! Building Package: Option 1 Custom Building Package: Option 2 Custom Building: Option 3
