Standard 4:12 with Standing Seam Roof

See Package Prices
Buy Online

Option 1
You Pick Our Profit 3, 5, 7, or 10%
  • 4 Models to Choose From
  • Key Accessories Included!
  • 1 or 2 Rollup Doors Included

Build Your Own Package
Use online Estimator!

Option 2
You Pick Our Profit 3, 5, 7, or 10%
  • 4 Models to Choose From
  • Personalize 10 Accessories!
  • Estimate your Own Package – Proceed to Quote

Complete & Submit Wholesale Quote Form

Option 3
You Pick Our Profit 3, 5, 7, 10 or 12%
  • Custom Dimensions: 24′ x 30′ x 10′ to 100′ x 500′ x 30′
  • All Accessories Available
  • All Building Models Available

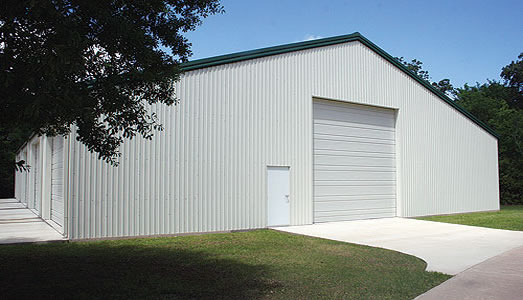

4:12 roof pitch steel Building model

Standing Seam roof system may be requested in Option 3 – Custom Quote.

Wholesale prices are offered to the public, from Factory Steel Overstock – and You select our profit earned on the sale.

It’s that simple.

More…

Key Features Included in Model:

  • 24 Gauge Standing Seam Polar White Roof

Key Features of Ultra-Dek® Standing Seam Roof

  • Curbside Appeal
  • Weather & wind resistant
  • Low maintenance
  • 12 designer colors
  • Lightweight
  • Superior strength / Durability
  • Full interlocking connection system Ultra-Dek® is a snap-together, standing seam roof system that shows no fasteners. It carries Air Leakage & Water Penetration testing approvals. Ultra-Dek® is a metal standing seam roofing product attached by using a variety of concealed, interlocking clips that provide for minimum panel penetrations. This panel offers a snap together sideslap seam and saves the rental cost of mechanical electric seamer.  Factory Steel Overstock recommends installing this panel in non-snow regions. This panel is designed to provide a high degree of weathertightness and has been tested by independent laboratories in accordance with ASTM E283 and E331 (for air infiltration and water penetration). (see image)

Standard Features included in all models:  * 40 Yr. Warranty on Colored Walls and Trim * 25 Yr. Warranty Galvalume Roof * Solid I-Beam Construction * Clear span design (no interior columns) * Lifetime Structural Warranty * Complete Trim Package for walls, roof and doors  (base angles and base closures in lieu of base trim) * 26 Gauge sheeting -80,000 p.s.i. tensile strength | 1 1/4″ sheeting profile * Purlin bearing rib (PBR panels – larger overlap than R panels- All panels incorporate the purlin bearing profile *Life-time warranty roof fasteners * All bolts, screws, closures, weather stripping, sealants, fasteners as required to erect structure *  The pre-punched connecting clips for the structural members, including endwall columns, are welded in place and then primed during fabrication * All structural elements for the specified framed openings ( jamb, girts and headers) are pre-cut and pre-punched and the necessary clips are welded on during fabrication * Prices reflect cable braces in optimal locations * Anchor bolts and erection services by other.

Manufacturer is an AISC (American Institute of Steel Construction) certified plant as well as an MBMA (Metal Building Manufacturer Association) member – established over 50 years.

Metal building prices posted on website reflect full roof snow load/wind speed | Wind Exposure  – B |  Seismic (SS) 16.110 (S1) 8.120 | IBC-2015.

Please call your local building department to verify the following, as these factors can affect your price:

  • Snow Load/ Wind Speed
  • Wind Exposure, Example: Exposure B or C
  • Seismic Loads
  • Governing Code, Example: IBC 2009, 2014 or 2015

Free Certified Building Plans for ALL 50 states.

  • Letter of Certification
  • 2 sets of certified stamped erection plans
  • 2 sets of certified stamped anchor bolt plans

Certified Foundation Plans (additional cost). Available states: WA, OR, CA, ID, NV, AZ, WY, UT, CO and NE.

Additional Specifications for metal building kits.  If you would like to read comparisons, click Why Choose Us page.

standing seam roof metal barns


Standard 4:12 with Standing Seam Roof

Size4lb./115mph20lb./115 mph0lb./130mph0lb./150mph
30'x30'x12'$9,202$9,222$9,446$9,623
30'x30'x14'$9,674$9,694$9,681$10,122
30'x40'x12'$10,624$10,754$10,895$11,105
30'x40'x14'$11,166$11,286$11,181$11,683
30'x50'x12'$12,310$12,546$12,646$12,727
30'x50'x14'$12,893$12,995$12,807$13,366
30'x50'x16'$13,754$13,971$14,105$14,552
30'x60'x12'$14,145$14,338$14,405$14,752
30'x60'x14'$14,807$15,011$14,817$15,441
30'x60'x16'$15,888$16,111$16,244$16,850
40'x40'x12'$12,982$13,059$13,198$13,478
40'x40'x14'$13,501$13,725$13,594$14,426
40'x60'x12'$17,101$17,431$17,442$17,854
40'x60'x14'$17,884$18,200$17,972$18,912
40'x60'x16'$19,140$19,495$19,738$20,365
40'x60'x18'$20,158$20,422$20,685$21,359
40'x72'x14'$20,354$21,003$20,507$21,830
40'x72'x16'$21,812$22,384$22,432$23,317
40'x72'x18'$22,779$23,365$23,482$24,499
40'x80'x14'$22,123$22,872$22,199$23,850
40'x80'x16'$23,504$24,270$24,297$25,474
40'x80'x20'$26,029$26,555$26,931$28,135
40'x100'x14'$26,614$27,807$26,790$28,458
40'x100'x16'$28,328$29,591$29,157$30,424
50'x75'x14'$25,723$26,766$26,089$27,751
50'x75'x16'$27,370$28,373$28,076$29,186
50'x75'x18'$28,443$29,486$29,191$30,745
50'x75'x20'$29,498$30,570$30,434$32,428
50'x100'x14'$32,151$33,581$32,561$34,559
50'x100'x16'$34,141$35,511$34,863$36,407
50'x100'x18'$35,389$36,820$36,146$38,191
50'x100'x20'$36,719$38,193$37,567$40,093
50'x125'x16'$41,231$42,974$41,956$43,693
60'x100'x14'$36,555$38,280$36,854$39,021
60'x100'x16'$38,406$40,404$39,377$41,723
60'x100'x20'$41,761$43,931$42,779$45,455
60'x125'x16'$46,436$48,555$47,448$49,909
60'x125'x18'$47,811$50,589$48,714$51,977
60'x125'x20'$49,720$52,505$50,701$54,364
